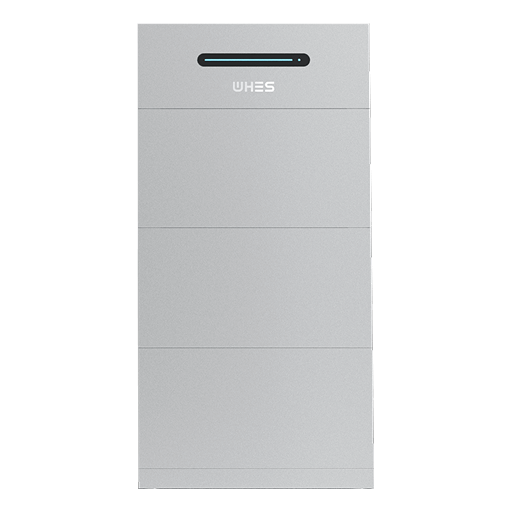

The WHES High-Voltage LFP Battery Box represents the next generation of modular energy storage, engineered to be the reliable, safe, and intelligent heart of any modern energy system. Designed as a flexible and scalable battery module, it transforms how energy is stored and managed, from single-family homes seeking energy independence to commercial and industrial facilities aiming for peak shaving and backup power. With a foundational capacity range of 4.99 kWh to 19.9 kWh per unit and the ability to scale seamlessly up to a massive 99.5 kWh of usable energy through parallel connection, this product is built on the industry-proven Lithium Iron Phosphate (LFP) chemistry. It combines this inherent safety with a multi-layered protection architecture, smart management, and unparalleled installation simplicity, delivering not just power, but peace of mind.
Philosophy and Core Design: Flexibility and Reliability
The product is built on two foundational pillars: flexibility and reliability. Its modular design philosophy, encapsulated in the phrase "start as you like," allows system designers and homeowners to begin with a base configuration that meets current needs and expand capacity incrementally as demand grows or budgets allow. This eliminates the need for oversized initial investments and provides a future-proof pathway. The physical form factor is designed for this scalability, enabling units to be stacked and connected with minimal effort. Beyond flexibility, reliability is engineered into every layer. The battery's robust appearance is matched by its internal construction, which adheres to the highest global standards, including UL 9540A—the industry's most stringent safety test for thermal runaway fire propagation. This commitment to safety is not an afterthought but the core of the product's identity.
Multi-Layered Safety Architecture: From Cell to System
WHES has implemented a sophisticated, four-layer protection design that safeguards the system from the individual cell level up to the complete structural enclosure, ensuring operational safety under a wide range of conditions.
- Cell-Level Foundation: High-Reliability LFP Cells: The system utilizes premium-grade Lithium Iron Phosphate (LFP) cells sourced from top global suppliers. LFP chemistry is renowned for its exceptional thermal and chemical stability, significantly reducing the risk of thermal runaway compared to other lithium-ion chemistries. These cells have passed the rigorous UL 9540A certification, providing a foundational layer of safety and durability that promises a long cycle life and consistent performance.
- Module-Level Fortification: Insulation and Thermal Management: Within each battery module, multiple protective measures work in concert:
- Insulation Protection Tape: This specialized tape wraps individual cells or cell groups, creating a critical barrier. Its primary function is to prevent a localized cell failure, such as leakage or damage, from causing a short circuit that could propagate to the entire module. This isolation is vital for containing faults.
- Flame-Retardant Insulated Foam: This material serves a triple purpose. First, it provides thermal insulation and fire protection, effectively blocking and delaying the spread of high temperatures between cells to prevent a chain reaction of thermal runaway. Second, it acts as a cushion and shock absorber, mitigating physical stress and vibration that could damage cell structures over time, thereby extending the overall battery life.
- Aluminum Plate: Acting as an integrated heat dissipation plate, the aluminum plate efficiently conducts heat away from the battery cells during charge and discharge cycles. By maintaining the cells within their optimal temperature range, it enhances performance, efficiency, and longevity while contributing to overall system safety.
- Platform-Level Intelligence: BMS and EMS Guardianship: Safety extends beyond hardware into intelligent software. The battery is managed by a fully self-developed Battery Management System (BMS) and is integrated within the broader Energy Management System (EMS) of the WHES ecosystem. This "High Performance Platform Layer Guard" utilizes cloud-native technology and machine learning to provide predictive analytics, operational planning, real-time control, and proactive protection throughout the device's entire lifecycle. It continuously monitors voltage, current, temperature, and state of charge, making intelligent decisions to optimize performance and prevent unsafe operating conditions.
- Active Safety Intervention: The Intelligent Fire Suppression Kit: In an unprecedented step for residential energy storage, WHES offers an optional Intelligent Fire Suppression Kit. This system represents the ultimate safety net. It is designed to identify a fire within the battery enclosure and activate suppression mechanisms to extinguish it within an astonishing 15 seconds. This rapid response effectively removes fire hazards at their inception, providing an active defense layer that protects both the energy storage system and the surrounding property.
Performance and Usability Features
- Wide Operational Temperature Range: The battery is designed to perform reliably in diverse climates, with an operational temperature range of -4°F to 131°F (-20°C to 55°C). This ensures stable operation in both freezing winters and hot summers.
- Adaptive Heating: To maintain performance in cold environments, the system includes adaptive heating functionality. This ensures the battery can accept a charge even at low ambient temperatures, preventing damage and ensuring energy availability when needed.
- Simplified Installation and Robust Design: The design prioritizes installer and user friendliness. The IP65 ingress protection rating means the enclosure is completely dust-tight and protected against low-pressure water jets, allowing for safe installation in garages, utility rooms, or outdoors. The system features a cable-free connection system with integrated plug-in terminals. This eliminates the time-consuming and error-prone process of hand-wiring, enabling a stackable installation in as little as 15 minutes per unit. This "plug-and-play" approach drastically reduces labor costs and complexity.
- Massive Scalability for C&I Applications: While perfect for homes, the battery's scalability makes it a formidable solution for commercial and industrial (C&I) scenarios. With support for up to 5 units in parallel, a system can be built with a total usable capacity of up to 99.5 kWh. This makes it ideal for applications requiring significant energy storage for load shifting, demand charge reduction, or extended backup power.
- Smart Connectivity and Future-Proofing: The battery is a key component of the WHES ECOS platform. This ecosystem enables remote firmware updates and self-diagnosis, ensuring the system continuously improves and can identify potential issues before they cause problems. It provides homeowners and facility managers with real-time, detailed data on energy generation, consumption, and storage, coupled with robust data analysis tools for optimizing energy usage patterns and maximizing financial returns.
Certifications and Compliance
The WHES High-Voltage LFP Battery Box is engineered for global markets, complying with a comprehensive suite of international safety and performance standards. These include UN38.3 (transportation safety), IEC 62619 (safety for secondary cells and batteries for industrial applications), IEC 61000 (EMC), IEC 62040 (UPS), IEC 63056 (safety for electrical energy storage systems), UL 1973 (standard for batteries for use in stationary applications), and FCC Part 15 (Class B) for electromagnetic compatibility. This wide array of certifications underscores its suitability for residential, commercial, and utility-scale projects worldwide.
Conclusion
The WHES High-Voltage LFP Battery Box is more than just a container for energy; it is a thoughtfully engineered storage solution that balances power, flexibility, and uncompromising safety. Its modular and scalable design caters to evolving energy needs, while its four-layer protection system—from UL 9540A-certified cells to an optional intelligent fire suppression kit—sets a new benchmark for security in energy storage. Coupled with user-centric features like IP65 rating, plug-in installation, and intelligent remote management via the ECOS platform, it delivers a powerful, safe, and simple energy storage experience. Whether for a homeowner seeking resilience and savings or a business managing energy costs and reliability, this battery box provides a future-proof foundation for a sustainable and secure energy ecosystem.
