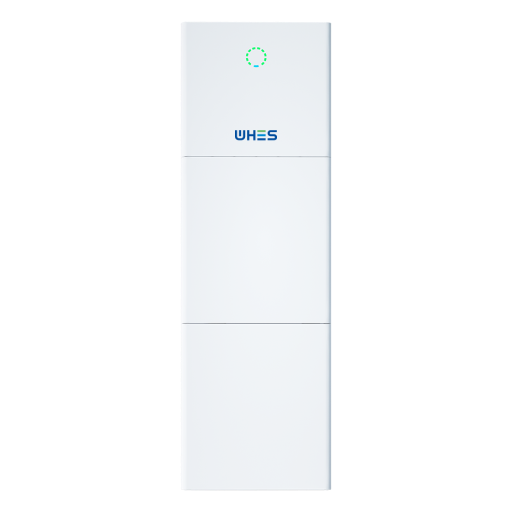

The WHES PP-S1 represents a sophisticated, fully integrated energy storage system meticulously designed for the modern single-phase residential market. This all-in-one unit seamlessly combines a solar inverter, battery storage, and advanced energy management into a single, compact enclosure, eliminating the complexity typically associated with multi-component setups. Available in a scalable range from 3.6kW to 6kW of AC output power and 5.12kWh to 10.24kWh of usable battery capacity, the PP-S1 is engineered to empower homeowners with energy independence, significant cost savings on electricity bills, and unwavering power reliability during grid outages. Its design philosophy centers on delivering a harmonious blend of high performance, exceptional ease of use, robust safety, and intelligent operation, making the transition to smart home energy management both simple and highly effective.
Core Design and Market Positioning
The PP-S1 is positioned as a premium plug-and-play solution for households seeking to maximize self-consumption of rooftop solar energy, reduce dependence on the volatile grid, and ensure an uninterrupted power supply for essential loads. The system’s integrated nature is its foundational advantage; by pre-assembling the inverter, battery modules, and control systems at the factory, WHES guarantees optimal compatibility, reliability, and a drastic reduction in on-site installation time and effort. The product literature emphasizes a remarkable "2 Hours Installation Time," a claim that underscores the system's user-friendly design aimed at minimizing disruption for the homeowner and reducing labor costs for the installer. This approach transforms a traditionally complex electrical project into a straightforward appliance-like installation.
Key Performance Characteristics and Technical Specifications
The system's performance is detailed through a comprehensive technical specification table covering four primary power models (3.6kW, 4.6kW, 5.0kW, 6.0kW), each configurable with either one or two 5.12kWh battery packs.
- Photovoltaic (PV) Integration: The PP-S1 is built for efficient solar harvesting. It supports significant PV oversizing, with maximum input power ranging from 4800 Wp for the 3.6kW model to 8000 Wp for the 6.0kW model. This oversizing capability allows homeowners to install larger solar arrays to capture more energy during sub-optimal light conditions. The system features two Maximum Power Point Trackers (MPPTs), each with a maximum input current of 12.5A, ensuring compatibility with a wide array of modern, high-current solar panels. The MPPT voltage range is 100-500V, providing design flexibility for various string configurations.
- Battery Technology: At the heart of the storage system are Lithium Iron Phosphate (LFP) battery cells, renowned for their long cycle life, thermal stability, and safety. The standard battery pack configuration is 1P*64S, utilizing 3.2V/25Ah cells to form a nominal pack. Each pack provides 5.12kWh of energy, and the system can house one or two packs for a total of 5.12kWh or 10.24kWh. The battery operates within a voltage range of 80-100V and can handle a maximum charge/discharge current of 25A. The system boasts a high power density of 89 Wh/kg, contributing to its compact form factor.
- AC and Backup Power Performance: The system provides versatile power handling. The rated AC input/output power scales with the model (e.g., 3600W output for the 3.6kW model). A critical feature for home resilience is the dedicated Emergency Power Supply (EPS) output. The PP-S1 offers an ultra-fast "Back-up Switch Time" of <10 ms, ensuring that critical household circuits experience no perceptible interruption during a grid failure. The EPS rated output power matches the unit's AC rating (e.g., 3600W for the 3.6kW model). Both grid-tied and EPS outputs support a wide voltage range (220/230/240V) and frequencies (50/60 Hz), with a power factor adjustable from -0.8 to +0.8, allowing for reactive power support. Total Harmonic Distortion (THDi) is kept below 3%, ensuring clean power quality that protects sensitive electronics.
- Efficiency and Protection: The system achieves high conversion efficiency, with a peak PV efficiency of 97.3% and a European weighted efficiency of 97.0%, maximizing the energy yield from the solar array. It incorporates a comprehensive suite of protection mechanisms, including over/under voltage protection, DC isolation, battery reverse polarity protection, PV reverse current protection, anti-islanding, and over-temperature safeguards, ensuring safe operation under various fault conditions.
User-Centric Features and Benefits
The product's advantages are categorically presented as Convenient, Flexible, Quiet, and Smart, which perfectly encapsulates the user experience.
- Convenient: The "pre-installed battery" and fully integrated design mean there are "no extra modules or inverters required," validating the swift installation claim. The system is controlled and monitored via an intuitive LED display and a companion mobile app, putting system management at the homeowner's fingertips.
- Flexible: With an IP65 protection rating, the PP-S1 is robust enough for both indoor and outdoor installation, providing great flexibility in siting the unit (e.g., garage, utility room, or an external wall). It supports multiple operational modes, including self-power consumption from solar, backup power during outages, and intelligent load shifting to use stored energy during peak grid tariff periods.
- Quiet: Operating at less than 25 dB, the system is exceptionally quiet—quieter than a typical whisper. This "no noise pollution" feature is crucial for residential environments, ensuring the system can be installed near living spaces without causing disturbance.
- Smart: The PP-S1 is designed for the future of energy grids. It is "Compatible with VPP" (Virtual Power Plant), allowing homeowners to potentially earn revenue by allowing grid operators to aggregate and dispatch the stored energy for grid stability services. Its compatibility with IoT (Internet of Things) ecosystems enables broader smart home integration. Features like "Remote updates & self-diagnosis" ensure the system's software can be improved over-the-air and that it can alert users or installers to potential issues proactively.
Physical and Environmental Specifications
The system employs a non-isolated topology for high efficiency. It operates reliably within a temperature range of -10°C to +55°C, with a relative humidity range of 0% to 35% (non-condensing), and at altitudes up to 3000m. Cooling is achieved through natural convection, eliminating the need for noisy fans. Communication with external devices or monitoring systems is facilitated through RS485 or CAN bus interfaces. The system is designed for floor-standing installation. It complies with a robust set of international safety and grid standards, including UN 38.3 (transportation), IEC 62619 (battery safety), IEC 62109 (power converter safety), and relevant grid codes like VDE-AR-N 4105, ensuring its suitability for global markets.
Warranty and Reliability Assurance
A standout commitment highlighted in the document is the "10 years/30 MWh Warranty." This long-term, throughput-based warranty provides homeowners with significant peace of mind, guaranteeing the system's performance and durability over a decade, which aligns with the typical payback period for such an investment and underscores the confidence WHES has in the quality and longevity of its LFP battery technology.
Conclusion
The WHES PP-S1 All-In-One Energy Storage System is a compelling, feature-rich solution that successfully addresses the primary demands of the residential energy market. It delivers powerful and efficient energy conversion, substantial and long-lasting storage capacity, and crucially, failsafe backup power with lightning-fast switching. By wrapping this technical prowess in a package that emphasizes incredible ease of installation (2-hour claim), silent operation, outdoor durability (IP65), and forward-looking intelligence (VPP/IoT readiness), the PP-S1 removes the traditional barriers to home energy storage adoption. Coupled with a strong 10-year warranty, it presents itself not just as a piece of equipment, but as a long-term partner in achieving energy independence, resilience, and cost management for the discerning homeowner.
