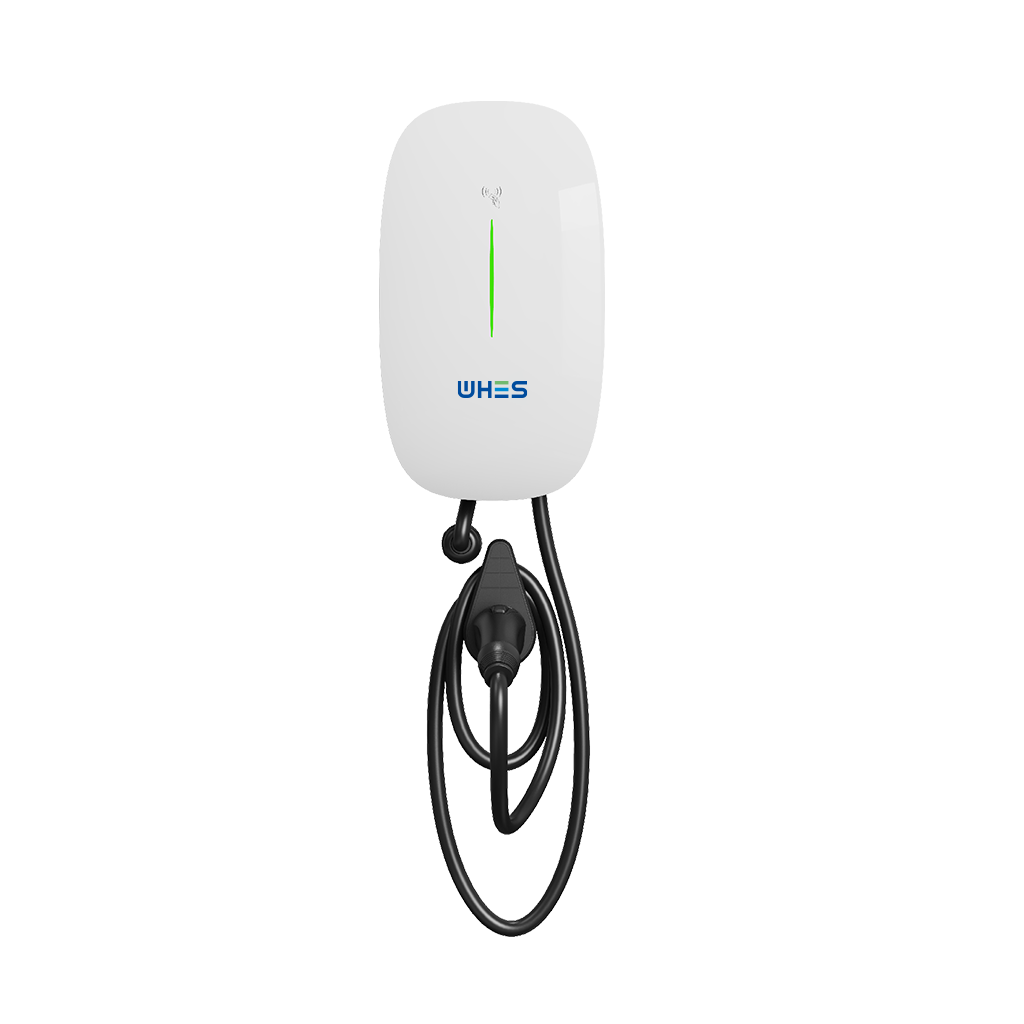

WHES EV Charger (7kW / 11kW): Smart, Safe, and Seamless Home Charging Integrated with Your Solar & Battery Storage
The WHES EV Charger series, comprising the 7kW (WH-ECA-7.0) and 11kW (WH-ECA-11.0) models, represents a sophisticated and user-centric solution for residential and light commercial electric vehicle charging. Designed with the modern, energy-conscious homeowner in mind, this charger goes beyond merely supplying electricity to a vehicle; it serves as an intelligent node within a broader home energy ecosystem. Its core promise is "Seamless EV Charging, Powered by Your Home," emphasizing integration with existing photovoltaic (PV) solar panels and battery energy storage systems (BESS) to enable truly sustainable and cost-effective electric mobility. By prioritizing flexibility, safety, smart connectivity, and elegant design, the WHES EV Charger transforms the EV charging experience from a simple utility into a strategic component of home energy management.
Philosophy and Core Design: Integration and Intelligence
The fundamental design philosophy of the WHES EV Charger is built on seamless integration and intelligent operation. In an era where homes are increasingly equipped with solar panels and battery storage, the charger is engineered to communicate and coordinate with these assets. Instead of drawing power solely from the grid—potentially during expensive peak hours—the charger can be configured to prioritize the use of surplus solar energy or stored battery power. This intelligent energy routing maximizes self-consumption of renewable energy, reduces electricity costs, and lowers the carbon footprint of EV driving. The charger acts not as an isolated appliance but as a controllable load that can be managed in harmony with the home's total energy generation, storage, and consumption patterns.
Key Features and User Experience
The product's advantages are clearly categorized into four pillars: Flexible, Friendly, Safe, and Smart.
- Flexible Installation and Power Adaptation: The charger offers remarkable installation versatility. It supports both wall-mount and pole-mount installations, allowing it to be placed in garages, carports, or dedicated outdoor charging stations based on the user's property layout. A significant technical feature is its automatic switching capability between single-phase and three-phase power supply. The 7kW model (WH-ECA-7.0) is designed for standard single-phase home wiring (230V, 32A), while the 11kW model (WH-ECA-11.0) leverages three-phase power (400V, 16A per phase). This design intelligence allows the charger to automatically detect and adapt to the available electrical infrastructure, ensuring optimal charging performance without requiring complex manual configuration.
- Friendly and User-Centric Design: User experience is paramount. The charger boasts a streamlined, finely polished finish that blends aesthetically with both modern and traditional home exteriors. It is designed for plug-and-play, easy installation, minimizing setup complexity for professional installers. For the end-user, starting a charging session is intuitive and offers multiple options: simple Plug&Play, using an RFID card for personalized access control, or via a companion mobile App for remote management and monitoring.
- Safe and Robust Construction: Safety is engineered into every aspect. The enclosure achieves an IP65 ingress protection rating, making it completely dust-tight and protected against water jets from any direction. This qualifies it for reliable indoor or outdoor application in all weather conditions. It also features IK10 impact protection, indicating high resistance against physical impacts. Electrically, it incorporates a comprehensive suite of protections including a 30mA Type A + 6mA DC Residual Current Device (RCD) for enhanced protection against electric shock, especially in circuits that might have DC fault currents from nearby solar systems. Additional safeguards include over-current, surge, over/under voltage, over/under frequency, and over-temperature protection.
- Smart Connectivity and Ecosystem Integration: The intelligence of the charger is unlocked through its connectivity. It supports Wi-Fi (2.4 GHz) as standard, with optional modules for Bluetooth, 3G/4G, and Ethernet, ensuring a reliable connection in various home network environments. Crucially, it operates on the open Open Charge Point Protocol (OCPP 1.6J), the industry standard for communication between charging stations and central management systems. This enables advanced features like remote control, scheduling, and energy monitoring via a backend platform. Most importantly, this protocol support facilitates integration with home energy management systems for load balancing—preventing the total home load from exceeding the main supply capacity—and direct compatibility with PV and BESS, allowing for dynamic, rule-based charging (e.g., "charge only using solar excess").
Technical Specifications and Performance
The detailed specification table provides a clear comparison between the two models:
- Models & Power: The series offers two power levels: the WH-ECA-7.0 delivers 7kW of output power, suitable for overnight charging for most EVs. The WH-ECA-11.0 delivers 11kW, offering faster charging, particularly beneficial for EVs with larger batteries or when quicker turnaround is needed.
- Electrical Input/Output: The 7kW model operates on a single-phase 230V, 32A supply, while the 11kW model requires a three-phase 400V, 16A (per phase) supply. Both support a frequency of 50/60 Hz. The output is delivered via a standard Type 2 connector (IEC 62196), which is the dominant standard for AC charging in Europe and many other regions. A 4-meter cable is standard, with a socket-only option available.
- User Interface & Communication: The interface includes a multi-color LED indicator (Green/Yellow/Red) for clear status communication (available, charging, fault). The integrated Mifare ISO/IEC 14443 A compatible RFID reader allows for secure, personalized access. As mentioned, communication options are extensive, with Wi-Fi standard and OCPP 1.6J ensuring smart functionality and future-proofing.
- Environmental Robustness: The charger is built to perform in a wide range of conditions. Its operating temperature range is -30°C to +50°C, and it can function at altitudes up to 2000 meters and in relative humidity of 5% to 95% (non-condensing). The housing is made of durable Plastic PC940.
- Standards Compliance: The product is designed and tested in accordance with key international EMC (Electromagnetic Compatibility) standards EN/IEC 61000-6-2:2019 (immunity) and EN/IEC 61000-6-4:2019 (emissions), ensuring it does not interfere with other household electronics and operates reliably in typical electromagnetic environments.
Conclusion
The WHES EV Charger (7kW / 11kW) is more than just a power delivery device; it is an intelligent energy appliance designed for the future of sustainable living. By seamlessly integrating with home solar and battery systems, it empowers users to fuel their vehicles with clean, self-generated energy, turning a daily expense into an opportunity for greater energy independence and savings. Its robust safety features, flexible installation options, user-friendly design, and open-protocol smart capabilities make it a reliable, secure, and forward-looking choice for any EV owner looking to optimize their home charging setup. Whether as a standalone smart charger or as the perfect complement to a WHES home energy ecosystem, this product delivers a seamless, safe, and sustainable charging experience.
